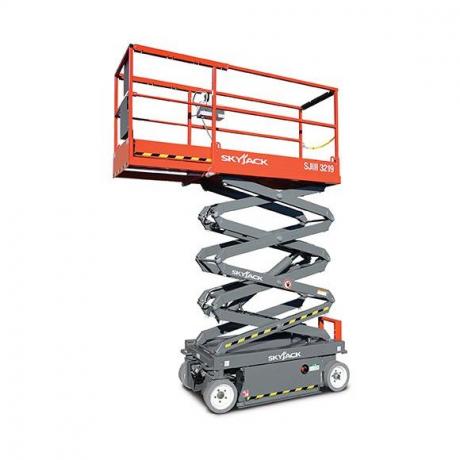

Electric Slab Scissor Lift SJIII3219

OVERALL SPECIFICATIONS

SJIII 3219

Work Height

25’ (7.62 m)

Raised Platform Height

19’ (5.79 m)

Lowered Platform Height

39” (0.99 m)

Overall Width

32” (0.81 m)

Overall Length

70” (1.78 m)

Stowed Height (Rails Up)

78.5” (1.99 m)

Stowed Height (Rails Down)

OPT 64.5” (1.64 m)

Platform Width (Inside Dimension)

26” (0.66 m)

Platform Length (Inside Dimension)

64” (1.63 m)

Extension Deck (Roll Out)

3’ (0.91 m)

Ground Clearance (Stowed)

2.375” (6.03 cm)

Ground Clearance (raised)

0.7” (1.78 cm)

Wheelbase

55” (1.40 m)

Weight

2,580 lbs (1,170 kg)

Gradeability

30%

Turning Radius (Outside)

66” (1.68 m)

Lift Time (With Rated Load)

25 sec

Lower Time (With Rated Load)

29 sec

Drive Speed (Stowed)

2 mph (3.2 km/h)

Drive Speed (Raised)

0.7 mph (1.1 km/h)

Maximum Drive Height

Full Height

Capacity (Overall)

550 lbs (249 kg)

Distributed Capacity (Main Platform)

300 lbs (136 kg)

Distributed Capacity (Extension Deck)

250 lbs (113 kg)

Local Floor Load (With Rated Load)

110 psi (759 kPa)

Overall Floor Load (With Rated Load)

201 psf (10 kPa)

Maximum # of Persons

2

Wind Rating

28 mph (12.5 m/s)

Tire Type

Solid, N/M

Tire Size

12 x 4 x 8
