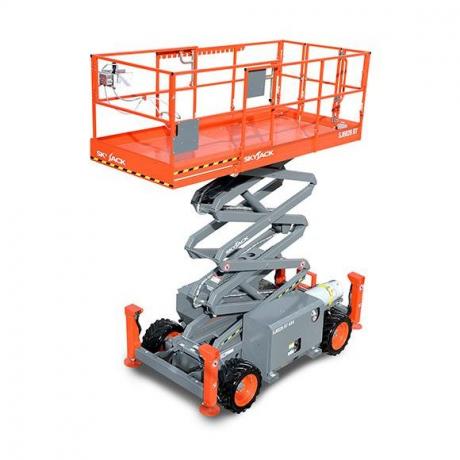

Rough Terrain Scissor Lift Skyjack 6832RT

SJ6832 RT

OVERALL SPECIFICATIONS

Work Height

38’ (11.58 m)

Raised Platform Height

32’ (9.75 m)

Lowered Platform Height

54” (1.37 m)

Overall Width

69.5” (1.76 m)

Overall Length

107” (2.72 m)

Stowed Height (Rails Up)

99” (2.51 m)

Stowed Height (Rails Down)

69” (1.75 m)

Platform Width (Inside Dimension)

56” (1.42 m)

Platform Length (Inside Dimension)

96” (2.44 m)

Extension Deck

5’ (1.52 m)

Ground Clearance

8” (0.20 m)

Wheelbase

80.5” (2.04 m)

Weight

7,660 lbs (3,475 kg)

Gradeability

40%

Turning Radius (Inside)

60” (1.52 m)

Turning Radius (Outside)

156” (3.96 m)

Lift Time (With Rated Load)

39 sec

Lower Time (With Rated Load)

36 sec

Drive Speed (Stowed)

3.8 mph (6.1 km/h)

Drive Speed (Raised)

0.4 mph (0.6 km/h)

Maximum Drive Height

Full Height

Capacity (Overall)

1,000 lbs (454 kg)

Distributed Capacity (Main Platform)

700 lbs (318 kg)

Distributed Capacity (Extension Deck)

300 lbs (136 kg)

Local Floor Load (With Rated Load)

181 psi (1248 kPa)

Overall Floor Load (With Rated Load)

297 psf (14 kPa)

Maximum # of Persons

4

Tire Type

Foam Filled

Tire Size

26 x 12
