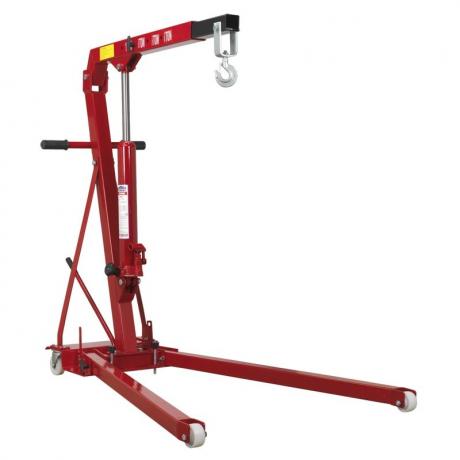

Engine Hoist

SKU: EH1

Model No:	PH20
Lifting Capacity Position 1:	2000kg
Lifting Capacity Position 2:	1500kg
Lifting Capacity Position 3:	1000kg
Lifting Capacity Position 4:	500kg
Lifting Capacity Position 5:	-
Max. Lift Ht at Max. Jib Ext. Position 1:	2060mm
Max. Lift Ht at Max. Jib Ext. Position 2:	2190mm
Max. Lift Ht at Max. Jib Ext. Position 3:	2330mm
Max. Lift Ht at Max. Jib Ext. Position 4:	2490mm
Max. Lift Ht at Max. Jib Ext. Position 5:	-
Length of Jib Position 1:	930mm
Length of Jib Position 2:	1110mm
Length of Jib Position 3:	1200mm
Length of Jib Position 4:	1460mm
Length of Jib Position 5:	-
Height Jib Down:	1440mm
Length:	1750mm
Length Legs Extended:	-
Rear Width:	850mm
Width Inside Front Frame:	915mm
Width Front Frame:	1055mm
Height Legs Folded:	1540mm
Height of Frame:	195mm
Weight:	77kg

Trade + consumer

Easy to use

Folding Crane 2tonne

• Lifts 2000kg at 930mm jib extension.
• Folds for easy storage, freeing valuable workshop space when not in use.
• Bottle jack type hydraulic unit for economy.
• Tested to 25% overload.
• Some self-assembly required.
